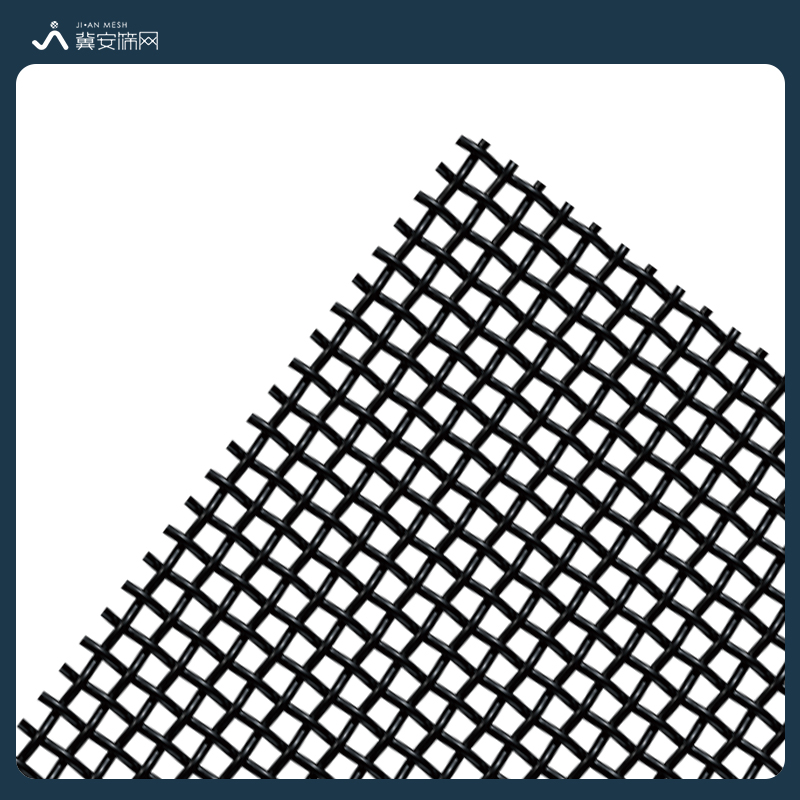

产品名称：金刚网 316L Standard security mesh

品牌名称：冀安筛网 JI'AN MESH

产品材质： 国标316 316L

符合GB/T 1220-2007《不锈钢棒》标准牌号的要求，

检验依据 ： GB/T 20123-2006 《钢铁 总碳硫含量的测定 高频感应炉燃烧后红外吸收法（常规方法）》JIS G 1258-1999+AMD 1-2000 Iron and steel-Methods for inductively coupled plasma atomic emission spectrometry

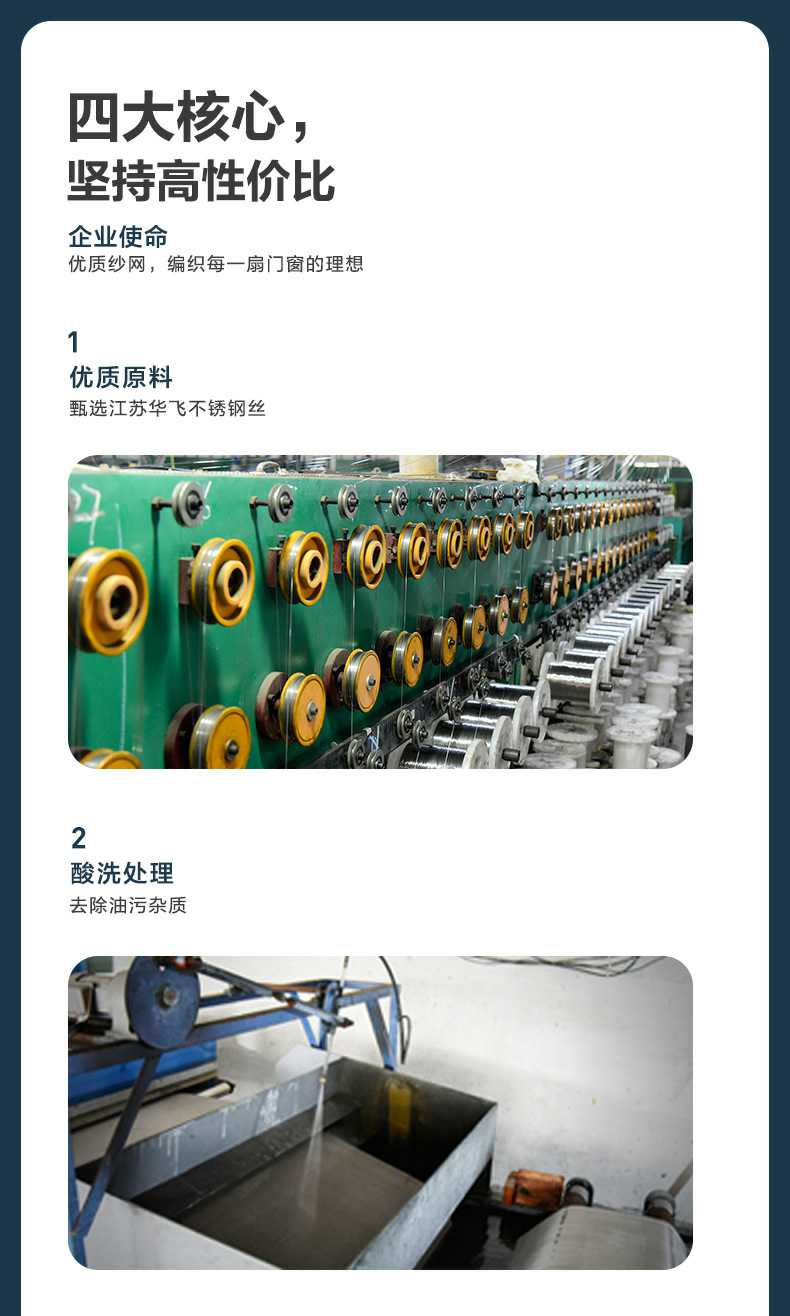

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                             Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：18目 Mesh
Weft thread count 纬线密度：18目 Mesh
Warp wire diameter 经线丝径：0.33mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.33mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.05kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min  立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：50%
Open area ratio开孔率：50%
Aperture size孔径：1100μm
Light transmittance透光率：56%
Ultraviolet blocking rate紫外线阻隔率：55%
Infrared blocking rate红外线阻隔率：50%

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                             Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：15目 Mesh
Weft thread count 纬线密度：15目 Mesh
Warp wire diameter 经线丝径：0.41mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.41mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.27kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min   立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：41%
Open area ratio开孔率：41%
Aperture size孔径：1600μm
Light transmittance透光率：51%
Ultraviolet blocking rate紫外线阻隔率：61%
Infrared blocking rate红外线阻隔率：60%

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                                Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：13目 Mesh
Weft thread count 纬线密度：13目 Mesh
Warp wire diameter 经线丝径：0.45mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.45mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：1.45kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min   立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：40%
Open area ratio开孔率：40%
Aperture size孔径：1180μm
Light transmittance透光率：51%
Ultraviolet blocking rate紫外线阻隔率：60%
Infrared blocking rate红外线阻隔率：54%

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                          Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：13目 Mesh
Weft thread count 纬线密度：13目 Mesh
Warp wire diameter 经线丝径：0.56mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.56mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：2.03kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：40μm
Curing conditions 固化条件：200°C / 5.25m/min  立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：36%
Open area ratio开孔率：36%
Aperture size孔径：1220μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外线阻隔率：63%
Infrared blocking rate红外线阻隔率：61%

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                                   Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：12目 Mesh
Weft thread count 纬线密度：11.5目 Mesh
Warp wire diameter 经线丝径：0.63mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.63mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：2.25kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：50μm
Curing conditions 固化条件：200°C / 5.25m/min  立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：43%
Open area ratio开孔率：43%
Aperture size孔径：1450μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外线阻隔率：63%
Infrared blocking rate红外线阻隔率：56%

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                                     Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：11目 Mesh
Weft thread count 纬线密度：10.5目 Mesh
Warp wire diameter 经线丝径：0.73mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.73mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：2.75kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：50μm
Curing conditions 固化条件：200°C / 5.25m/min  立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：42%
Open area ratio开孔率：42%
Aperture size孔径：1620μm
Light transmittance透光率：50%
Ultraviolet blocking rate紫外线阻隔率：64%
Infrared blocking rate红外线阻隔率：58%

Material类型(材质): 316L不锈钢 316L Stainless steel                                                                                                                                                     Process工序：拔丝工艺 Wire drawing process
Warp thread count 经线密度：11目 Mesh
Weft thread count 纬线密度：10.5目 Mesh
Warp wire diameter 经线丝径：0.88mm +0.03/-0.03mm
Weft wire diameter 纬线丝径：0.88mm +0.03/-0.03mm
Weave编织：平纹编织 plain weaving
Weight (kg/m2)织物重量(kg/m2)：3.75kg
Elogation (%)延展率(%)：45-55%
Coating涂层：复合树脂 Composite resin
Tensile strength（MPa）抗拉强度（MPa）：700-740MPa
Coating Process 喷涂工艺：静电喷涂 Electrostatic spraying
Coating thickness（μm）涂层厚度（μm）：50μm
Curing conditions 固化条件：200°C / 5.25m/min  立炉 Vertical coating equipment
Color颜色：黑色 Black/灰色Gray
Packing包装：编织袋 Woven bag
Ventilation rate通风率：40%
Open area ratio开孔率：40%
Aperture size孔径：1400μm
Light transmittance透光率：37%
Ultraviolet blocking rate紫外线阻隔率：69%
Infrared blocking rate红外线阻隔率：68%

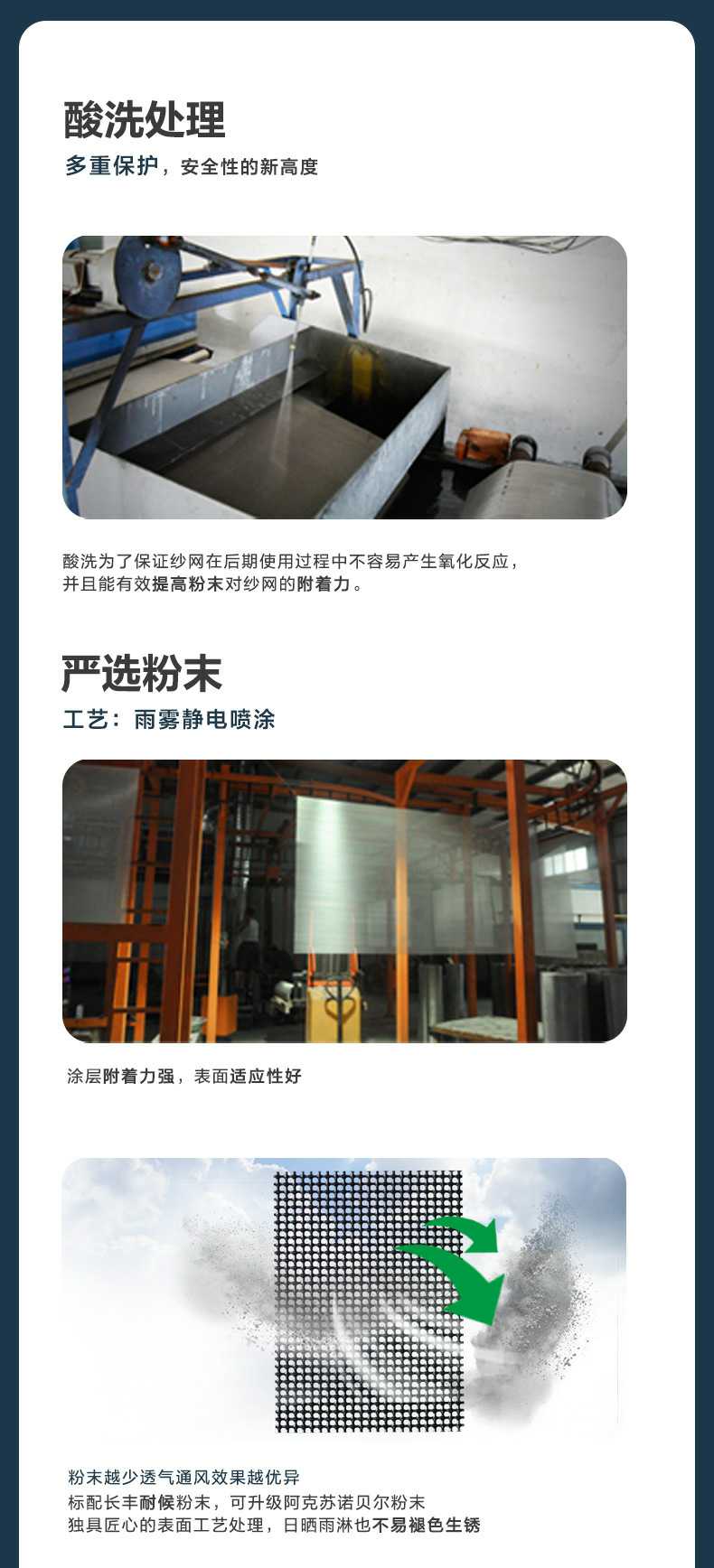

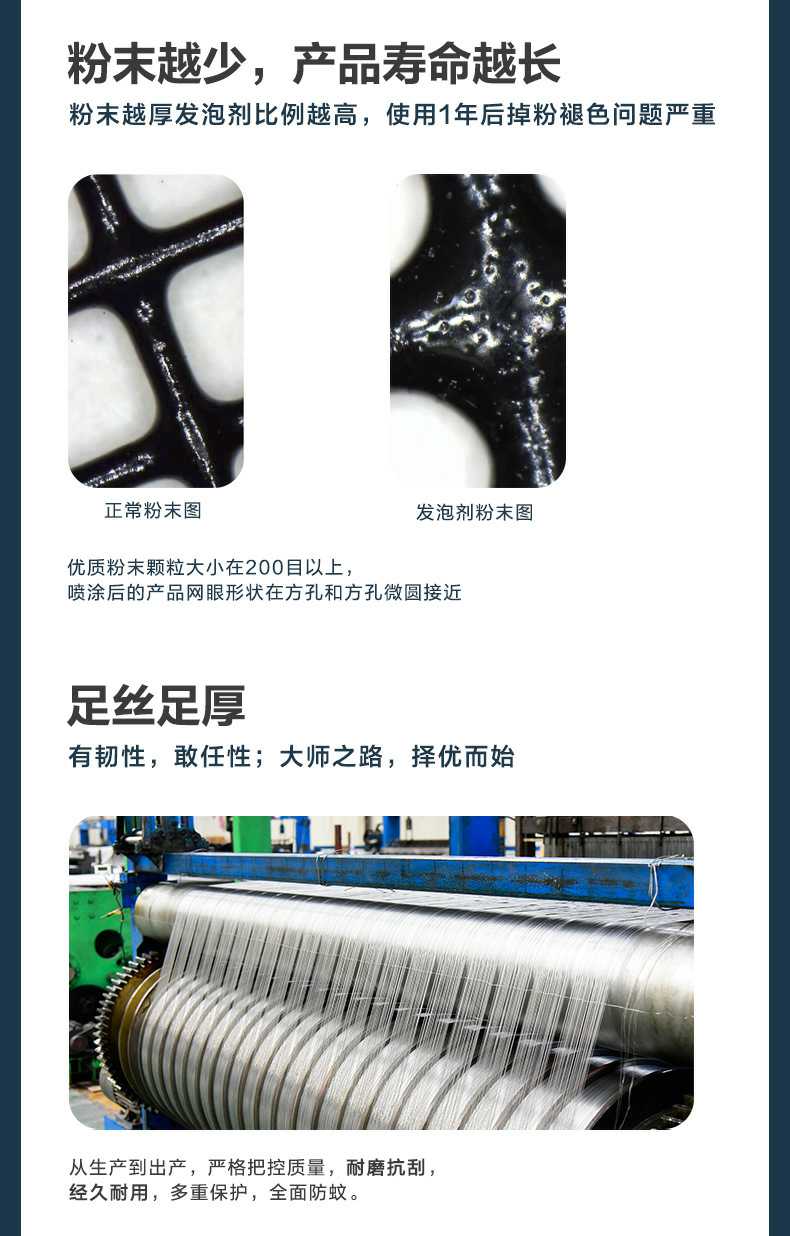

Product Features产品特点：金刚网自2008年在中国大规模生产和销售，至今已有15年以上的生产经验，确保了产品的质量与出厂品质。该产品采用静电粉末喷涂工艺，有效包裹丝径，提升抗腐蚀能力，但需控制粉末厚度，过厚的粉末会使网孔呈圆形，影响透光率和通风效果。产品的线径越粗，防护性能越好，但网孔也会相应变大，防蚊效果略有下降。为达到理想的防护效果，线径需在0.8mm以上，线径过细则防护性能不佳。

Stainless Steel Security Mesh has been mass-produced and sold in China since 2008, with over 15 years of production experience ensuring product quality. It uses an electrostatic powder coating process that effectively enhances corrosion resistance by covering the wire. However, the powder thickness must be controlled, as too much can round the mesh openings, reducing light transmission and airflow. Thicker wires offer better protection, but larger openings may reduce mosquito prevention. For optimal protection, the wire thickness should be over 0.8mm, as thinner wires provide less security.
